[Cordless] Ultrasonic dot-line sealer L-QPB-01
For welding plastic bags, non-woven fabrics, and other thin materials. It welds materials while drawing dotted lines with a wheel tip without the use of a stapler or adhesive tape.
Easy to operate
After turning on the main power and set the timer, slide the handpiece horizontally while gripping at the same time to weld.
Prevents contamination
Ultrasonic sealers require no staples, rubber bands, tape, or other consumables that accidentally enter the package and cause foreign material contamination.
No disruption of the package's appearance
Staples, rubber bands and tapes disrupt the appearance of packaging. However, using ultrasonic sealers helps to maintain the appearance with only small weld marks.
Easy to weld the intended point
The arc-shaped teeth of the handpiece allows the user to see the weld points clearly.
100 - 240 V
Our ultrasonic sealers can be used with voltages ranging from 100 to 240 V.
Download
Usage Examples
Demonstration Videos
-
How to charge
-

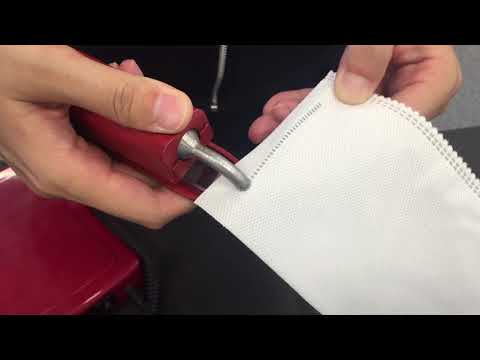

How to use
-
How to use / plastic bag
-
How to use / Non woven bag
-
Non woven fabrics in different thicknesses
-
Making non-woven bag
Features
Cordless
Shape of seal
It welds materials while drawing dotted lines with a wheel tip.
Easy to operate
Slide the handpiece horizontally while gripping at the same time to weld.
Easy to weld the intended point
The arc-shaped teeth of the hand piece allows the user to see the weld points clearly.
Prevents contamination
Ultrasonic sealers require no staples, rubber bands, tape, or other consumables that accidentally enter the package and cause foreign material contamination.
100～240V
Our ultrasonic sealers can be used with voltages ranging from 100 to 240 V.
Made in Japan
Made in Nagoya, Japan
Specifications
| Product Name | Ultrasonic dot-line Sealer [Cordless type] |
|---|---|
| Product Number | L-QPB-01 |
| Oscillation frequency | 57kHz |
| Max. output | 20W |
| Max. power consumption | 40VA |
| Power Source | 100V～240V AC 50/60Hz |
| Dimensions / unit | W140×D183×H66mm |
| Dimensions / hand piece | W36×D125×H54mm |
| Weight / unit | 1000g |
| Weight / hand piece | 160g |
Product Lineup
-
[Cordless] Ultrasonic point sealer QPB-01
For welding food packs, snap-on containers, blister packs, and other thermoplastic materials.
-
Ultrasonic point sealer QP-01
Plastic containers or materials can be welded without the use of a stapler or adhesive tape.
-
Ultrasonic dot-line sealer L-QP-01
Dotted line sealing by ultrasonic for plastic materials
