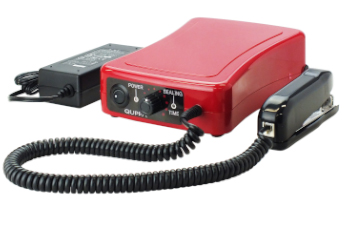

Ultrasonic dot-line sealer L-QP-01
Ultrasonic Dot-line Sealer L-QP-01
Easy to operate
After turning on the main power and set the timer, slide the handpiece horizontally while gripping at the same time to weld.
Prevents contamination
Ultrasonic sealers require no staples, rubber bands, tape, or other consumables that accidentally enter the package and cause foreign material contamination.
No disruption of the package's appearance
Staples, rubber bands and tapes disrupt the appearance of packaging. However, using ultrasonic sealers helps to maintain the appearance with only small weld marks.
Easy to weld the intended point
The arc-shaped teeth of the handpiece allows the user to see the weld points clearly.
100 - 240 V
Our ultrasonic sealers can be used with voltages ranging from 100 to 240 V.
Made in Japan
Download
Usage Examples
Demonstration Videos
-
How to use
-
Weld various plastics
-
Weld various chemical fabrics
-
How to use / plastic bag
-
How to use / Non woven bag
-
Non woven fabrics in different thicknesses
-
Making non-woven bag
-
How to make a laundry bag
-

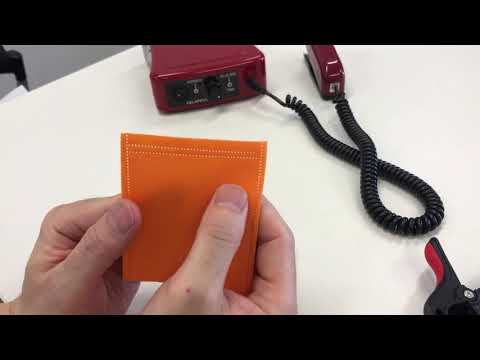

Non-woven pouch / 2 lines sealing
-
Laundry ironer guide tape connecting
-
Optional straight-line spot welding tip
Features
How to use
Slide the hand-piece horizontally while gripping it.
Dotted line sealing

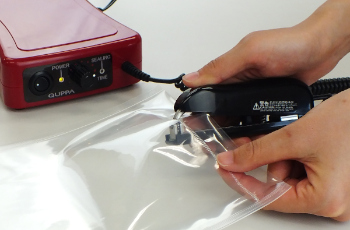

Plastic bag sealing
Ideal for packaging without using tapes needles and so on.
Dotted line sealing

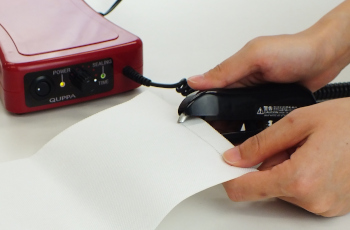

Non woven bag sealing
Ideal for packaging without using tapes needles and so on.
Easy to see contact points
Easy to see contact points
The arc-shaped teeth of the Hand piece allows the user to see the weld points clearly.
Repeated multi-directional vibration
Repeated multi-directional vibration to achieve strong welding.
100V～240V
Can be used anywhere in the world.
Made in Japan
Made in Nagoya, Japan
Optional tip
L-QP-01 can install the straight-line spot welding tip for spot welding.
Specifications
| Product Name | Ultrasonic dot-line sealer |
|---|---|
| Product Number | L-QP-01 |
| Oscillation frequency | 57kHz |
| Max. output | 20W |
| Power Source | 100V～240V AC 50/60Hz |
| Dimensions / unit | W179×D183×H66 |
| Dimensions / hand piece | W36×D125×H54 |
| Weight / unit | 1000ｇ(approx.) |
| Weight / hand piece | 200ｇ |
| Coiled code | 50㎝ |
| Timer | 1～6 sec |
Product Lineup
-
Ultrasonic point sealer QP-01
Plastic containers or materials can be welded without the use of a stapler or adhesive tape.
-
[Cordless] Ultrasonic dot-line sealer L-QPB-01
For welding plastic bags, non-woven fabrics, and other thin materials.
-
Ultrasonic welder AUH30 (100V)
You can easily weld plastic packaging and material by using the various shape of tips. (100V 50/60Hz)
