Impulse AZ Sealer

Simply apply light pressure to seal tightly.

Strong sealing / Impulse sealing / Compact body

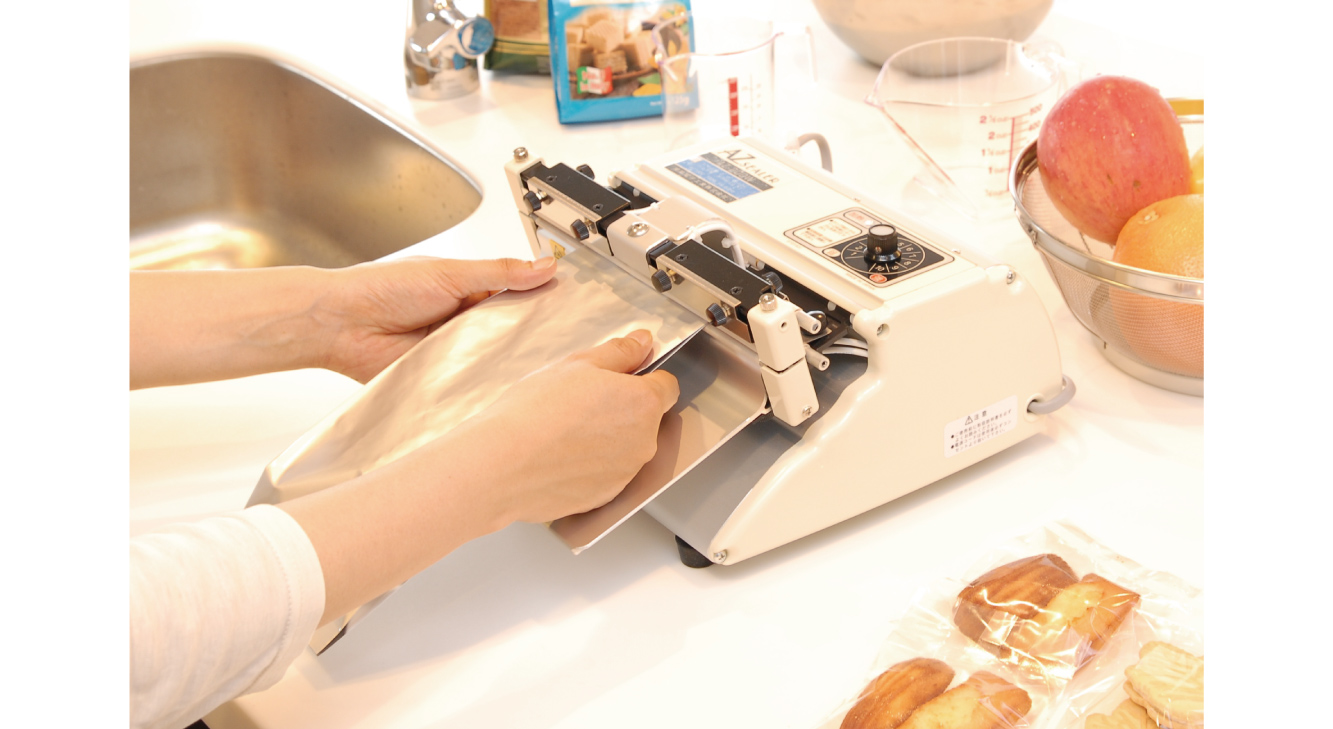

Simply apply light pressure to the table with both hands to seal tightly.

Ideal for sealing bags that provide protection from light,moisture, discoloration, loss of fragrance and is also perfect for use with silica gel packets.
It is possible to seal up to 5 mil thickness aluminum gadget bags.

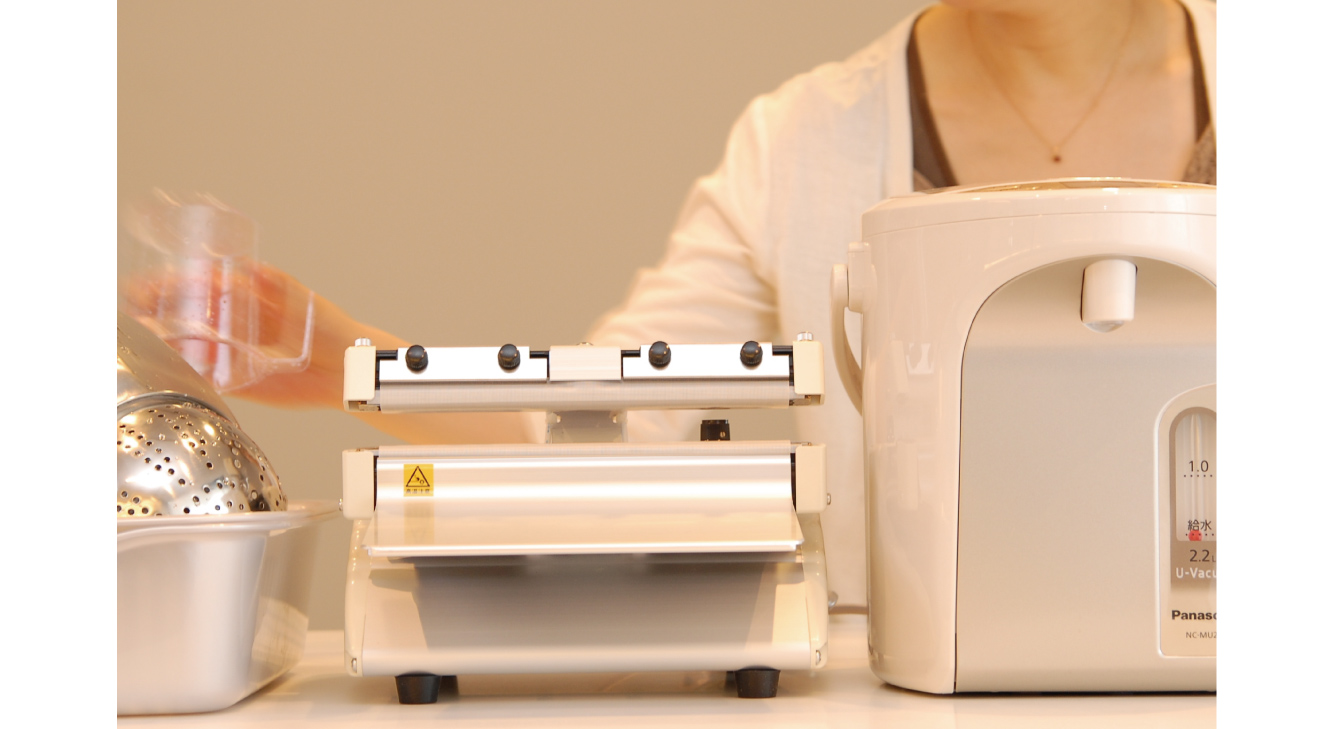

Dual-heating element model
Heating elements are mounted on both upper and lower sides.
It is possible to seal aluminum metalized film bags with four layers overlapping firmly.
*Perfect for metallic bag sealing to keep loose-leaf tea and coffee beans fresh by preserving fragrance and protecting from light.

Single-heating element model
Heating elements in mounted on lower side.
This model is suited for non-overlapping plastic bags.
*Ideal for sealing single – layer thick bags, thin bags and all sizes in between stably and efficiently.

– Made in Japan –

Usage Examples

Demonstration Videos

  • How to use / Dual heating element model

    How to use / Dual heating element model

  • How to use / Single heating element model

    How to use / Single heating element model

Features

The levered mechanical structure of this compact yet powerful sealer is designed to generate a strong seal by lightly pressing the table.

Levered structure

The levered mechanical structure of this compact yet powerful sealer is designed to generate a strong seal by lightly pressing the table.

The body is made from a single piece of solid aluminum. The aluminum table can be easily cleaned to maintain a spotless work space.

Solid unibody constructed frame

The body is made from a single piece of solid aluminum. The aluminum table can be easily cleaned to maintain a spotless work space.

Compact and easy to use sealer. Simply apply pressure to the table with both hands to seal.

Compact body

Compact and easy to use sealer. Simply apply pressure to the table with both hands to seal.

You can easily seal bags with heavy or unwieldy contents while steadying the bag with both hands.

Secure and beautiful sealing

You can easily seal bags with heavy or unwieldy contents while steadying the bag with both hands.

200S, 300S type: Heating element and pre-wound teflon sheet are  mounted on lower side.

Prewound teflon sheet

200S, 300S type: Heating element and pre-wound teflon sheet are mounted on lower side.

200W, 300W type: Heating elements and pre-wound teflon sheets are  mounted on both upper and lower side.

Prewound teflon sheet

200W, 300W type: Heating elements and pre-wound teflon sheets are mounted on both upper and lower side.

Possible to seal from single layer bags to 4 layers aluminum thick bags.

Applications

Possible to seal from single layer bags to 4 layers aluminum thick bags.

Specifications

Product Name Impulse AZ Sealer
Product Number AZ-200S, 200W, 300S, 300W
AZ-200S power source 100V
AZ-200W power source 100V
AZ-300S power source 100V / 120V / 220V
AZ-300W power source 100V / 120V / 220V

Product Lineup

  • AZ-200S

    Lower side single heating element model.
    Sealing length: 200mm
    Sealing width: 5mm
    Dimensions:
    240×300×170mm
    Weight: 3.8Kg
    100V

  • AZ-300S

    Lower side single heating element model.
    Sealing length: 300mm
    Sealing width: 5mm
    Dimensions:
    340×300×170mm
    Weight: .5Kg
    100V / 120V / 220V

  • AZ-200W

    Both upper and lower side dual heating element model.
    Sealing length: 200mm
    Sealing width: 8mm
    Dimensions:
    240×300×170mm
    Weight: 5Kg
    100V

  • AZ-300W

    Both upper and lower side dual heating element model.
    Sealing length: 300mm
    Sealing width: 8mm
    Dimensions:
    40×300×170mm
    Weight: 6.7Kg
    100V / 120V / 220V
