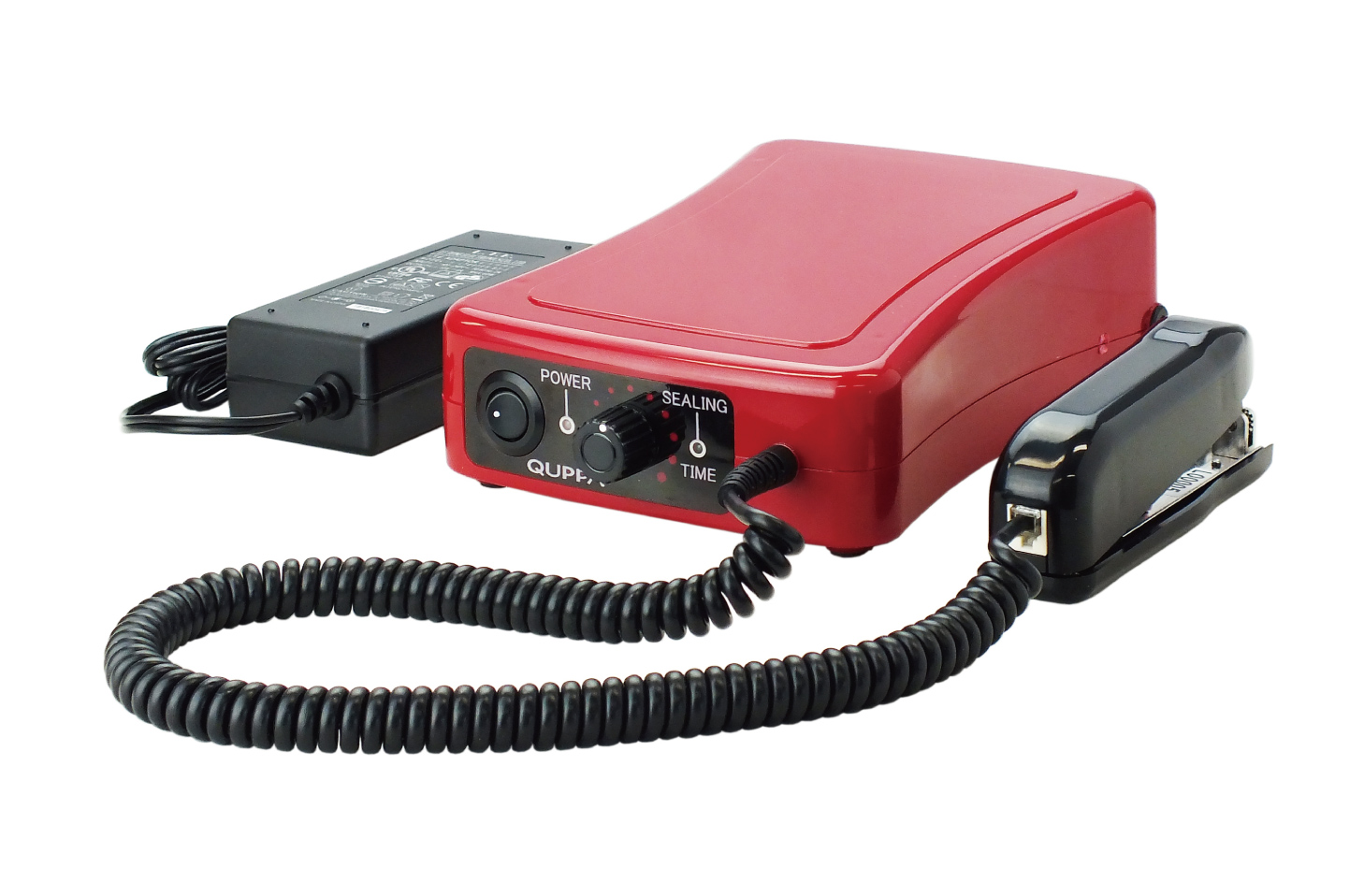

Ultrasonic dot-line sealer L-QP-01 for ironer guide tape welding

Ultrasonic dot-line sealer L-QP-01 for ironer guide tape welding

   L-QP-01   |   L-QPB-01   |


Easy, safe, and simple operation
Special vibration technology allows for strong welding with minimal force.
Ready to use as soon as the power is turned on.
Smooth and strong joint.

-Easy to use
Easily seals by sliding hand-piece while gripping it.

-Ultrasonic welding
The horn generates ultrasonic vibrations.
Ultrasonic vibrations generate frictional heat to weld materials.
It is safe as the horn doesn't generate heat.
Consumables are not used.

-Easy to see contact points
The work efficiency can be improved.

- Made in Japan

---Operating Instruction---
1.Turn on the power switch of the main unit.
2.Turn the timer knob to adjust the welding time.
3.Grip the handpiece.
S4.lide the handpiece while gripping it.

Usage Examples

Demonstration Videos

  • How to connect _1

    How to connect _1

  • How to connect _2 (3 layers)

    How to connect _2 (3 layers)

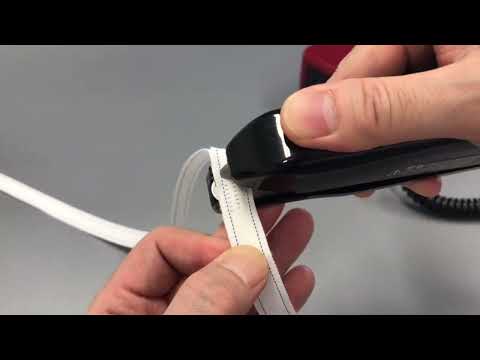

  • Laundry ironer guide tape connection

    Laundry ironer guide tape connection

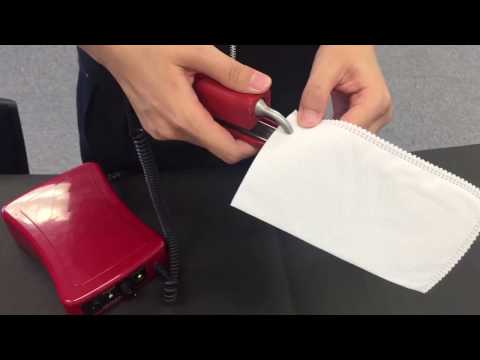

  • For non-woven fabric

    For non-woven fabric

Features

The arc-shaped teeth of the hand piece allows the user to see the weld points clearly.

Easy to see contact points

The arc-shaped teeth of the hand piece allows the user to see the weld points clearly.

Repeated multi-directional vibration to achieve strong welding.

Repeated multi-directional vibration

Repeated multi-directional vibration to achieve strong welding.

<a href="https://asahi-packaging.com/wp/wp-content/uploads/2023/03/ironer-guide-tape-welding-brochure.pdf"target="_blank"><u>Brochure</u></a><br />
<br />
Please see the bottom of the brochure.

Welding test data

Brochure

Please see the bottom of the brochure.

Specifications

Product Name Ultrasonic dot-line welder
Product Number L-QP-01
Oscillation frequency 57kHz
Max. output 20W
Timer 1~5 sec
Main unit W140×D183×H66 / 500g
Hand piece W36×D125×H54
Weight / unit approx. 1000g
Weight / hand piece W23×D128×H54 / 160g
Coiled code 50㎝
Power cord 320cm
Power Source 100V~240V AC 50/60Hz
Plug type A type (Plug adapter: C, I, G type)
