Foot-operated sealers
Various types of foot-operated sealers
Ideal for high-volume bag sealing
There are dual and single side heating types.
Effective sealing lengths between 300mm～600mm; available in various models for consumers to choose from.
Possible to seal metallized bags, thick bags, gazette bags and so on.
They are used in a wide range of industries including food, agriculture, chemicals, and so on.
Demonstration Videos
-
Foot-operated sealer
Features
Easy to operate
Insert the bag between the sealing bars and press down on the foot board.
Ideal for high-volume bag sealing
A height-adjustable table is installed
Various bags can be used
Pedal operation enables both hands to be free to position bags.
Wide Variety of Lineups
In addition to the one-side heating type for flat bags, the lineup includes the top and bottom heating type (CHB-300) for thick bags and the direct heating type (W-300D) exclusively for laminated bags.
Specifications
| Product Name | Foot-operated sealers |
|---|---|
| Product Number | CHB-300/WN-300-10/WN-450/WN-600/W-300D |
| Power souce | 100V (Possible to supply 220V types) |
Product Lineup
-

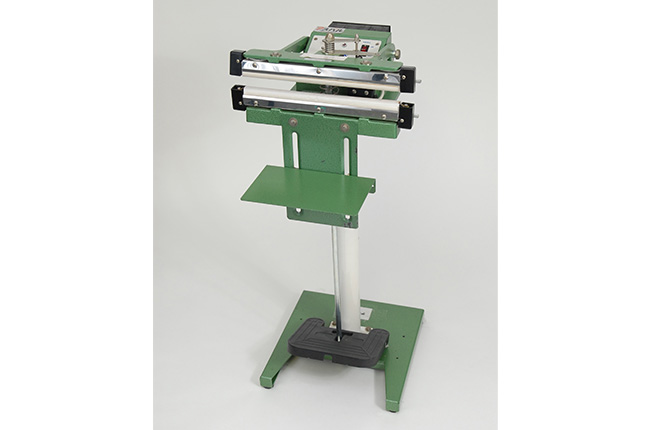

CHB-300
Dual heating impulse sealer
Allows users to change the operation mode between dual and single heating mode.
Sealing type: Dual heating or lower side single heating
Sealing length: 300mm
Sealing width: 5mm
Dimensions: 350×380×900mm -

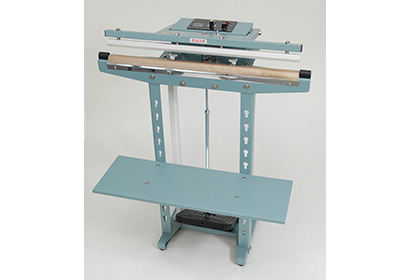

WN-300-10
Single heating impulse sealer
A height-adjustable table is installed
Sealing type: Lower side single heating
Sealing length: 300mm
Sealing width: 10mm
Dimensions: 340×380×900mm -
WN-450
Single heating impulse sealer
A height-adjustable table is installed
Ideal for rice bag sealing and so on
Sealing type: Lower side single heating
Sealing length: 450mm
Sealing width: 5mm
Dimensions: 530×440×860mm -
WN-600
Single heating impulse sealer
A height-adjustable table is installed
Long size 600mm type
Sealing type: Lower side single heating
Sealing length: 600mm
Sealing width: 5mm
Dimensions: 680×480×860mm -

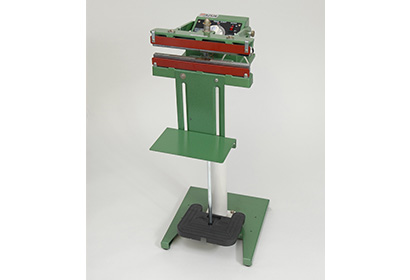

W-300D
Foot-operated heat sealer for laminated bags
A height-adjustable table is installed
Strong seal, 15mm width mesh-like pattern sealing face
Sealing type: Dual side heating
Sealing length: 300mm
Sealing width: 15mm
Dimensions: 370×330×900mm
