Retractable nozzle vacuum sealer for industrial use / ASV-320D
Retractable nozzle vacuum sealer for industrial use ASV-320D
This is an easy-to-use de-aeration sealer for business use. ASV-320D can vacuum pack large objects, long objects, and even moist contents.
ASV-320D is equipped with an in-built water collection cup.
Vacuuming performance - 80 kPa has been achieved and is 130% of the previous product.
*Available Bags
-Vacuum bags generally sold at packaging material stores can be used. Bags for vacuum pack have low oxygen permeability and maintain their vacuum. Nylon plastic and aluminum bags and so on are available.
-Supported bags (thickness example)
・Nylon polyethylene bags: Total thickness up to 240µ (120µ×2 layers)
・Aluminum vapor deposition bags: Total thickness up to 180µ (90µ×2 layers)
・Embossed vacuum bags: Total thickness up to 280µ (approx.)
Nozzle of the vacuum unit is detachable, and cleaning tube in the unit is simple.
Light weight 4.4 kg and compact body
*Vacuum pack for industrial use have many features such as improving storage quality, anti-oxidation and so on.
-Prevents scars
-Dust-proof
-Rust-proof
-Moisture-proof
-Prevents change in quality
-Accumulation packaging
-Space-saving
*How to use / Operation mode
You can select from the three modes.
-Automatic vacuum mode
Begin vacuuming after placing the bag in position. When the unit detects that the bag is vacuumed, seal mode will turn on automatically to vacuum the package.
-Manual Vacuum Mode
Check the degree of vacuum and switch to seal mode. To be used for sealing soft items such as bread.
-Seal Mode
This mode seals the bag only. Can be used for general sealing or to narrow the opening of bag of openings larger than 30cm.
- 100-240V 50/60Hz / Can be used worldwide -
- Complies with CE standards -
- Made in Japan -
*Recommended frequency of use.
-300 times / day
-100 times for continuous use
Download
Usage Examples
Demonstration Videos
-

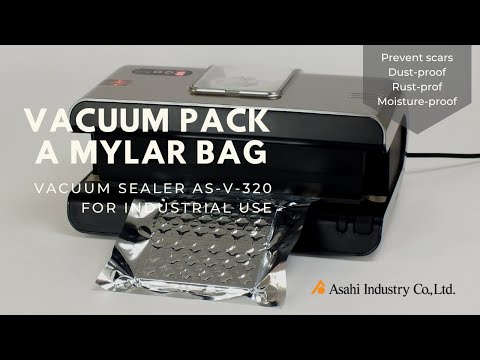

Mylar bag
-
Packaging for scratch prevention
-
Large bag
-
Space saving
-
Vacuum packaging to reduce shipping cost
Features
One touch fully automatic operation model
ASV-320D has only two buttons for basic operations. Start and select buttons. You can use your favorite mode as operation can be switched between the fully automatic and semi-automatic modes.
Can vacuum and seal even highly moist contents
ASV-320D is equipped with an in-built water collection cup.
Can be cleaned easily with its detachable nozzle
The nozzle of the vacuum unit is detachable and the portion in contact with the bag can be easily cleaned. You are able to use ASV-320D in clean conditions.
The nozzle of the vacuum unit is detachable and the portion in contact with the bag can be easily cleaned. You are able to use HIPPO in clean conditions.
Can be used for bags with opening up to 300mm. Adjustment based on the thickness of the bag is possible by setting the seal timer. Supports various bag materials such as poly-nylon,aluminum vapor deposition, and laminations.
Powerful vacuuming force
Vacuuming performance – 80 kPa has been achieved
and is 130% of the previous product. (Asahi data)
Vacuuming performance – 80 kPa has been achieved and is 130% of the previous product. (Asahi data)
You can use ASV-320D anywhere in the world just by using tip plugs of different shapes.
Easy understand operation status with the lamps
The lighting system changes depending on the selected functions and the operational status.
Power saving ECO design
Power consumption is 200W per hour.
Specifications
| Product Name | Retractable nozzle vacuum sealer for industrial use / ASV-320D |
|---|---|
| Product Number | ASV-320D |
| Seal length | 300 mm / 11.8 in |
| Seal width | 5 mm / 0.19 in |
| Pump efficiency | -80Kpa |
| Vacuuming speed | 7ℓ/min |
| Vacuuming method | Nozzle |
| Sealing time | 1 – 9 sec |
| Vacuuming time | Max. 60 sec |
| Power consumption | 200 W |
| Voltage | 100～240 V 50/60 Hz |
| Supported bags Width | 300 mm |
| Available bag thickness | ～0.24 mm, flat bag (Nylon polyethylene bag) / ～0.18 mm, flat bag (Aluminum vapor deposition bag) |
| Weight | 4.4 kg |
| Dimensions | W 394 × D 266 × H 176 mm |
